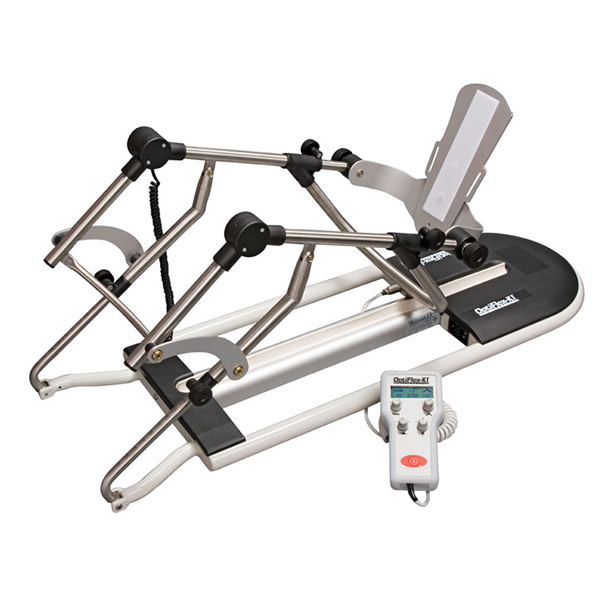

OptiFlex-K1™ Continuous Passive Motion Machine
OptiFlex-K1™ Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.
Features of the OptiFlex-K1™ Continuous Passive Motion Machine:
- Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
- Only 38 inches (97 cm) long
- Wide low-profile, closed-base frame for stability
- Faster motor speed
- Single screw drive
- Reversible footplate for shorter legs
- ROM -10 to 120
- On-board power supply
- Patient lockout feature
- Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
- Two-year warranty
Specifications of the OptiFlex-K1™ Continuous Passive Motion Machine:
| Knee Flexion: |
120° |
| Knee Extension: |
-10° |
| Speed: |
25° - 180°/minute |
| Pauses: |
0 - 59 seconds |
| Force Reversal: |
45 Kp of force* (built in) |
| Patient Height: |
4 - 6.5 ft (1.2 - 2 m) |
| Calf Length Range: |
10" - 22" (25.4 - 55.9 cm) |
| Thigh Length Range: |
12" - 19" (30.4 - 48.2 cm) |
| Mains Power: |
100V-240V, AC 50-60Hz |
| Unit Weight: |
23 lb (10.4 kg) |
| Shipping Weight: |
54 lb (24.5 kg) |
| Dimensions: |
38" x 14" x 9" (97 cm x 36 cm x 23 cm) |
| Electrical Safety Class: |
Class 1, Type B |
| Safety Tests: |
IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1 |
| Key lock function: |
yes |
yes |
yes |
| Pauses: |
yes |
yes |
yes |
| Speed: |
yes |
yes |
yes |
| Timer: |
no |
yes |
yes |
| Reverse on load: |
no |
yes |
yes |
| Warm up protocol: |
no |
yes |
yes |
| Default setting: |
no |
yes |
yes |
| Transport setting: |
no |
yes |
yes |
| Chip card selectable: |
no |
no |
yes |
| EROM repeat: |
no |
no |
yes |
| Stretch protocols: |
no |
no |
yes |
| Workout protocol: |
no |
no |
yes |
| Comfort protocol: |
no |
no |
yes |
| Therapy documentation: |
no |
no |
yes |
| EMS control: |
no |
no |
yes |
|
