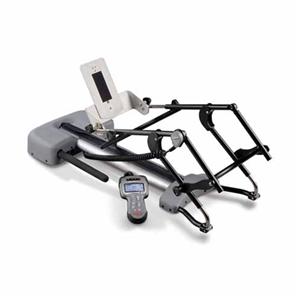

Used Chattanooga Knee CPM Machine
Slightly Used Chattanooga Knee CPM Machine provides comfortable rehabilitation for the knee. This machine meets a wide variety of rehabilitative needs.
Our machines used is between 200 - 1000 or over 1,000 - 5,000 hours. Life of machine is about 20,000 hours. Please click on drop down boxes to choose.
Under 1,000 hours has a 1 year warranty and units Over 1,000 hours has a 6 month warranty.
What is a CPM or Continuous Passive Motion Machine Video:
Specifications of the Slightly Used Chattanooga Knee CPM Machine:
- Machine Weight: 29 lb (13 kg)
- Length: 39” (99 cm)
- Width: 13” (33 cm)
- Sizing: Adult Femur 13-18” (33-46 cm)
- Tibia: 15-22” (38-56 cm)
- Total: 28-40” (71-102 cm)
- Pediatric Femur: 8-1/4-13” (21-33 cm)
- Tibia: 10-5/8-14-1/2” (27-37 cm)
- Total: 18-7/8-27-1/2” (48-70 cm)
Features of the Slightly Used Chattanooga Knee CPM Machine:
- Knee: -5 degrees to 115 degrees
- Ankle: 40 degrees
- Plantar Flexion: 30 degrees
- Dorsi Flexion: 30 degrees
- Internal / External Rotation: Pause 0 to 15 minutes
- In Flexion and/or Extension Speed: Max 140 degrees/minute
- At Average Limb length: Min 30 degrees/minute
- At Average Limb Length Force Flexion: 39.6 lb (18 kg) (min.) to 83.6 lb (38 kg) (max.)
- Extension: 22 lb (10 kg) (min.) to 44 lb (20 kg) (max.)
Benefits of The Kinetec* Optiflex* Knee CPM Machine:
- Waterproof hand control UL listed for hospital use
- New leg carriage design
- Designed for semi-anatomical motion
- Screw-drive transmission
- Reliable, quiet motion
- Programmable muscle stim capability
- Versatile Built-in therapy timer
- Easy programmable length of therapy
- 6-month limited warranty
- Easy care and maintenance
- Adult and pediatric capabilities
- One machine for both adults and pediatrics
Indications of The Kinetec* Optiflex* Knee CPM Machine:
- ACL reconstructions
- Total knee replacements
- Total hip replacements
- Sports injuries
- Synovectomies
- Open meniscectomies
- Lysis of adhesions
- Release of extra-articular contractions
- ORIF of intra-articular fractures
- Supracondylar fractures
- Cup arthroplasty
Contraindications / Precautions:
Not to be used in the presence of untreated or uncontrolled infection, unstable fractures or spastic paralysis.
