HDM Z1 Smallest CPAP Machine
No more worrying about packing your CPAP for travel. At only 10 ounces, the Z1 is the world’s smallest, lightest CPAP machine available today. It fits easily into an overnight bag because it is only 6.5 inches long, and with its optional FAA approved integrated battery, you’ll be assured of a good night’s rest even if the power goes out. The Z1 CPAP Machine makes camping or overnight travel easy for OSA sufferers. At about the size of a soda can, the Z1 will take up minimal space on your nightstand. All the premium features you would expect to find in larger CPAP units are available on the Z1.
Being diagnosed with OSA is anything but “cool” especially when the recommended treatment is a bulky CPAP machine. The new Z1 CPAP machine by Human Design Medical (HDM) helps make CPAP therapy easier by putting some “coolness” back into the machine. This CPAP is super small and totally portable.
Features:
- Incredibly light weight at 10 oz.
- Backlit LCD display so you always know the status of your session
- A strong 3 year warranty.
- Optional PowerShell™ cradle
- Optional CPAP Overnight Battery
- Data Recording & Software
- Ramp Feature
- ZBreathe Pressure Relief
- Can be used with the optional battery or regular AC power

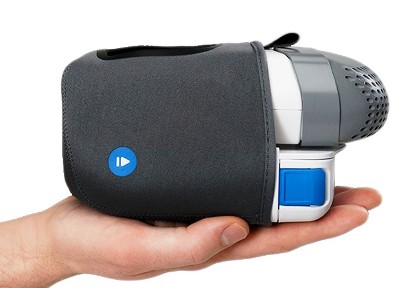

Optional Integrated PowerShell and Battery: Do you travel, camp, boat, or just want a failover power source for cpap? The PowerShell™ delivers a seamless platform for cordless cpap that delivers cord-free power. With hot-swap battery-modules and failover capabilities,for those times when the power goes out. The battery and Z1 CPAP are held together by the well organized PowerShell. This compact Unplugged System is the ultimate solution for cpap users who travel or on the go. The lithium ion battery is rechargeable and offers 8 hours of use from a single charge. The Z1 CPAP machine shows the amount of power remaining in the battery right on the display screen.
Advance Features:
Z-Breathe™: More natural breathing. A top concern cpap users have is the difficulty in exhaling against the pressure exerted by the cpap machine. The Z1™ uses our proprietary Z-Breathe™ algorithm that learns from your breathing pattern and relieves machine pressure on exhalation. This comfort feature can be adjusted by you as needed.
Auto Altitude Adjustment: The Z1 CPAP machine can operate from sea level up to 8,000 feet above sea level. The machine automatically adjusts as needed to accommodate changes in elevation
Sound Level: Due to the high velocity of the small motor, the Z1 could potentially have a higher pitch than other comparable machines. If noise sensitivity is an issue, we recommend calling us to discuss your option.
Leak Compensation: the Z1 automatically compensates for minor air leakage
helping ensure the proper treatment pressure is maintained.
Ramp Feature: The Z1 CPAP machine includes a ramp feature that can be set from 0 to 45 minutes. This allows the CPAP pressure to start at a lower pressure, and then gradually increase to the prescribed pressure. The Ramp can be customized by the user and even turned off if needed.
Upgradable Operating System: The Z1 firmware and software can be easily updated via the USB Cable and your computer or by using a Micro SD Card.
Heat Moisture Exchanger For Humidification: The hygenic, disposable HME works by capturing heat and moisture as you exhale and provides it back to you as you breathe. The HME does not use any electricity or complex moving parts. The HME can be used for 10 days.
Data Recording & Software: The Z1 CPAP machine records data concerning the time of use and sleep events. Using the software is free with the purchase of the machine and can be updated using the included USB cable. The software is compatible with Window based computers.
PHYSICAL SPECIFICATIONS |
Size (Approx) |
6.48 x 3.30 x 2.02 Inches |
Weight (Approx) |
10.4 Ounces |
Materials |
Not Made with Natural Rubber Latex |
PERFORMANCE SPECIFICATIONS |
Therapy Modes |
CPAP, CPAP with Ramp, Standby |
Pressure Range |
4-20 CM H2O |
Default Settings |
8 CM H2O |
Ramp |
User Adjustable 0 to 45 Minutes |
Ramp Start |
4 to CPAP Pressure |
Sound Levels (Average) |
Less Than 26 dBA |
Altitude Adjustment |
Automatic Up To 8000 Feet |
Leak Compenstation |
Automatic |
Auto On/Off |
Not Applicable |
Comfort Technology |
Z-Breathe (Settings = 1 Minimum, 2 Moderate, 3 Maximum) |
Rainout Reduction |
Not Applicable |
Filters |
Disposable (Ultra Fine) |
COMPATIBILITY |
Masks |
Compatible with all CPAP & BiPAP Masks |
Tubing |
The Z1 CPAP includes a Custom Tube Adapter compatible with all Standard and Performance CPAP Tubing. For proper operation the Tube Adapter MUST ALWAYS be in place when using the Z1 device. |
Humidifiers |
Heat Moisture Exchanger (HME) Included for Optional Use |
Supplemental Oxygen |
NOT Compatible with Supplemental Oxygen |
THERAPY DATA & COMPLIANCE |
Data Storage |
30 Days of Storage Onboard |
Data Included |
Events and Time of Use |
Data Viewing |
Free HDM Data Viewer Software (Windows PC) |
POWER SPECIFICATIONS |
AC (Wall) Power |
AC power 100-240V, 50-60Hz (Auto Sensing) |
AC Power Supply Size |
3.75 x 1.75 x 1.25 Inches (Approx) |
AC Power Supply Weight |
9.5 Ounces (Approx) |
AC Power Cord Length |
10 Feet 4 Inches (Approx) |
Power Consumption |
20-35 Watts |
DC (Mobile) Power |
Optional Accessory |
DC Power Supply Weight |
3 Ounces (Approx) |
DC Power Cord Length |
6 Feet 6 Inches (Approx) |
DC Power Cord Fuses |
5 Amp |
DC Power Input |
12 Volts |
Battery Power |
Optional Integrated PowerShell & Battery Module |
BATTERY SPECIFICATIONS |
Battery Type |
14.4v Lithium Ion Battery Pack |
Battery Capacity |
45 Watt Hours |
Battery Size |
PowerShell = 6.00 x 4.25 x 3.00 Inches Battery Module = 4.00 x 3.75 x 1.50 Inches (Approx) |
Battery Weight |
PowerShell = 9.8 Ounces Battery Module = 9.0 Ounces (Approx) |
Battery Run Time (Avg) |
1-2 Nights Per Battery Module Depending on Settings. Lower pressure settings will increase run times and higher pressure settings will decrease run times. At a pressure setting of 6CM most users will achieve more than 13 hours of run time per battery. At a pressure setting of 14CM most users will achieve more than 8 hours of run time per battery. |
Recharge Time |
Up to 8 Hours When Fully Depleted (Typical Per Battery) |
Battery Life |
300 Cycles (Average) |
Battery Notes |
For best performance Battery Modules should be fully charged prior to first use. Batteries recharge in the Z1 PowerShell when connected to AC or DC Power. In-house tests at GoSouthernMD.coml show that using a 4-foot tube and low Z-Breathe settings can increase overall battery run times. For complete care and use instructions, refer to the manual that came with your Z1 device or PowerShell. |
FAA APPROVED |
Z1 CPAP is FAA Approved. This product is approved by the FAA for use on all commercial flights within the US and all international flights that depart or arrive in the US. |
Manufacturer |
Human Design Medical |
In The Package |
Z1 CPAP Machine, 4-Foot SlimStyle Tubing, Air Filter, Universal Tube Adapter, Universal AC Power Supply with Cord, Micro USB Cable, Printed Instructions, One Heat Moisture Exchange Filter, and 3 Year Manufacturer's Warranty. PowerShell Battery Pack, Mobile DC Power Cord, and additional custom options available in shopping cart. |
Part Number(s) |
HD60-1005 (Z1 CPAP Machine), HD60-1010 (Z1 CPAP Machine with PowerShell Battery Pack) |
HCPCS Insurance Code |
E0601 |
Manufacturer's Warranty |
3 Years Warranty Notes: Warranty applies to primary item. Accessory and parts warranties may vary. Review manufacturer's documentation for full details. |
Typical Country of Origin |
United States of America |
