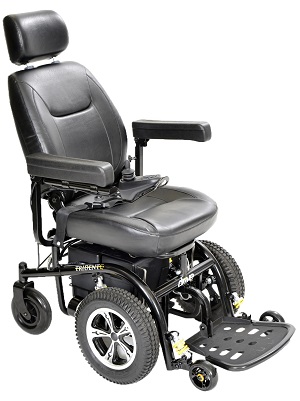

Drive Trident Standard Power Wheelchair Front Wheel Drive
Drive TRIDENT Power Wheelchair Product Summary:
- Shroudless design offers easy access to internal components and batteries.
- Semi-reclining seat with adjustable headrest offers three height adjustments and two depth options.
- Armrests and padded, adjustable and removable.
- Available with 18” or 20” width Captain’s Seat.
- Quick release pins allow easy seat removal.
- Adjustable, flip-up footplate includes rubber front bumper to prevent damage.
- Positioning belt included.
- Seat position can be adjusted forward and backward.
- Programmable controller.
- Optional swing-away controller arm sold separately.
- Optional elevating legrests sold separately.
- Black, flat-free non-marking wheels.
- Large, front anti-tip wheels feature suspension for safety, smoother ride and enhanced obstacle handling.
- Controller is protected by metal frame.
- Easy free-wheel operation.
GoSouthernMD.com offers a Peace of Mind (POM) extended warranty, call us for price 855-528-2539.
Drive TRIDENT Power Wheelchair Specifications:
| HCPCS |
KO823 |
|---|
| Weight Capacity |
300 lbs. |
|---|
| Top Speed |
4 mph |
|---|
| Maximum Range |
15 miles |
|---|
| Turning Radius |
24” |
|---|
| Climbing Angle |
7.5° |
|---|
| Ground Clearance |
2" |
|---|
| Dimensions |
42.25” (L) x 27.25” (W) |
|---|
| Floor-to-Seat Height |
21” - 24” |
|---|
| Seat Dimensions |
18” (W) x 18” (D) | 20” (W) x 18” (D) |
|---|
| Controller |
PG VR2 50A |
|---|
| Motors (2) |
24V x 320W x 4600 rpm |
|---|
| Batteries (pair) |
12V x 36AH (U1) |
|---|
| Charger |
4A Offboard |
|---|
| Brakes |
Electromagnetic |
|---|
| Caster Wheels |
8” x 2” Solid |
|---|
| Drive Wheels |
14” x 3” Flat Free |
|---|
| Base Weight |
82 lbs. |
|---|
| Battery Weight (pair) |
53 lbs. |
|---|
| Seat Weight |
51 lbs. |
|---|
| Total Weight |
186 lbs |
|---|
| Warranty of Frame |
Lifetime |
|---|
| Warranty on Electronic Controller/Drive Train Components |
14 Months |
|---|
| Warranty on Batteries |
6 months |
|---|
|
