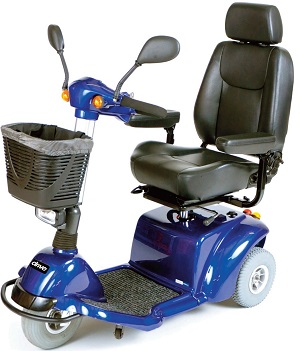

Drive Medical PILOT 2310 Scooter
Drive Medical PILOT 2310 Scooter Product Summary:
- 22 mile maximum range excellent for indoor and outdoor use.
- Standard comfortable and durable Captain’s Seats feature deep-contoured cushions and backs for maximum comfort and support.
- Captain’s Seats swivel and feature a fold-down backrest with 25 degrees of recline and an adjustable height headrest.
- Seats have four height adjustments, from 20" to 23".
- Seat can be moved forward or backward using the auto-style seat slides.
- Padded, flip-up armrests allow for easy transfers and user access. Armrests are also removable and height and width adjustable.
- Adjustable angle, delta tiller allows the user to position the controls at the most comfortable angle and depth.
- Ergonomic controls make it easier for those with limited strength or dexterity to handle the scooter.
- Anti-tip wheels for greater safety.
- Standard safety package includes headlight, horn, turn signals and dual rear view mirrors.
- 350 lb. Weight Capacity
- Standard safety package includes rear view mirrors, headlight and turn signals. (Figure A)
GoSouthernMD.com offers a Peace of Mind (POM) extended warranty, call us for price 855-528-2539.
Drive Medical PILOT 2310 Scooter Specifications:
| HCPCS |
Group 2 / KO807 |
|---|
| Weight capacity |
350 lbs. |
|---|
| Top Speed |
6 MPH |
|---|
| Top Range |
22 Miles |
|---|
| Turning Radius |
53" |
|---|
| Climbing Angle |
6° |
|---|
| Ground Clearance |
3" |
|---|
| Unit Dimensions |
47" (L) x 22" (W) x 45" (H) |
|---|
| Floor to Seat Height |
20" - 23" |
|---|
| Seat Dimensions |
18" (W) x 18"(D) x 21"(H) | 20"(W) x 19" (D) x 21"(H) |
|---|
| Controller |
Dynamic R90A |
|---|
| Motor/Drive System |
24V x 350W x 4200RPM |
|---|
| Batteries |
12V 35AH (U1) (2) |
|---|
| Charger |
5 AMP Off Board |
|---|
| Brakes |
Electro Magnetic |
|---|
| Front Wheels |
10" x 3"Flat Free |
|---|
| Rear Wheels |
10" x 3"Flat Free |
|---|
| Base Weight |
84 lbs. |
|---|
| Battery Weight |
48 lbs. |
|---|
| Seat Weight |
Captain's Seat 18" 49 lbs./20" 55 lbs. |
|---|
| Total Weight |
198 lbs. (18”)| 204 lbs (20”) |
|---|
| Warranty |
Lifetime on Frame, 14 Months on Electronic Controller and Drive Train Components, Six Months on Battery. |
|---|
|
