DRIVE VENTURA 3 DLX Midsize Scooter

Additional Images:     1     2

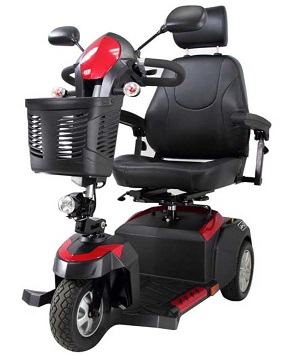

VENTURA 3 DLX Midsize Scooter

VENTURA 3 DLX Midsize Scooter Features:

• Includes interchangeable color panels in Red & Blue.
• 36 AH batteries for extended range.
• Armrests are padded and adjustable.
• Floorboard with 23” of foot space.
• Ergonomic throttle control.
• Height adjustable swivel seat features fold down backrest.
• Seat position can be adjusted forward or backward.
• Rear supsension.
• Programmable controller.
• Seat back reclines and features adjustable headrest.
• Available with 18” or 20” width Captain’s Seat.
• Flat free, non-marking tires.
• Large, plastic carry basket.
• Easy to adjust tiller.
• Anti-tip wheels.
• Headlight.
• Rearview mirrors.
• Turn signals/hazard lights.
• Delta tiller.
• Easy free-wheel operation.

VENTURA 3 DLX Midsize Scooter Specifications:

HCPCS	N/A
Weight Capacity	350 lbs.
Top Speed	5 mph
Maximum Range	22 miles
Turning Radius	53”
Climbing Angle	7.5°
Ground Clearance	2.5”
Dimensions	48” (L) x 25” (W)
Floor-to-Seat Height	20.5” - 23.5”
Seat Type	Captain’s
Seat Dimensions	18” (W) x 18” (D) | 20” (W) x 18” (D)
Motor	24V x 350W x 5100rpm
Batteries (pair)	12V x 36AH
Charger	4 Amp Offboard
Brakes	Electromagnetic
Front Wheels	10” x 3” Flat-free
Rear Wheels	10” x 3” Flat-free
Base Weight	88 lbs.
Battery Weight (pair)	46 lbs.
Seat Weight	40 lbs.
Total Weight	174 lbs.
Warranty on Frame	Lifetime
Warranty on Electronic Controller/Drive Train Components	14 Months
Warranty on Batteries	6 Months

Ventura 318CS      Ventura 320CS
