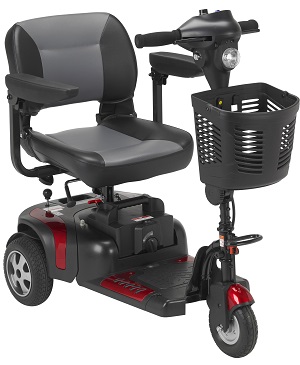

PHOENIX HD 3 Heavy Duty Travel Scooter
PHOENIX HD 3 Heavy Duty Travel Scooter Product Summary:

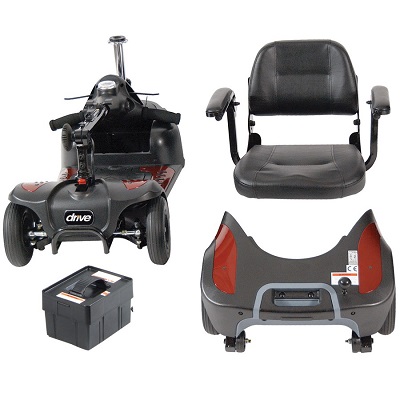

- Quick & easy disassembly. (Figure A)
- Includes interchangeable color panels in Red & Blue. (Figure B)
- Armrests are padded and adjustable.
- Quick connect batteries.
- Ergonomic throttle control.
- Height adjustable swivel seat with two-tone upholstery.
- Flat-free, non-marking tires.
- Large, plastic carry basket.
- Easy to adjust tiller.
- Anti-tip wheels.
- Headlight.
- Swivel seat with fold down backrest.
- Easy free-wheel operation.
PHOENIX HD 3 Heavy Duty Travel Scooter Specifications:
| HCPCS |
K0801 |
|---|
| Weight Capacity |
350 lbs. |
|---|
| Top Speed |
4 mph |
|---|
| Maximum Range |
15 miles |
|---|
| Turning Radius |
43" |
|---|
| Climbing Angle |
6° |
|---|
| Ground Clearance |
3.75" |
|---|
| Dimensions |
39" (L) x 22.5" (W) |
|---|
| Floor-to-Seat Height |
20" - 22" |
|---|
| Drive System |
24V x 350W x 3600rpm |
|---|
| Seat Type |
Folding |
|---|
| Seat Dimensions |
17.5" (W) x 17" (D) |
|---|
| Motor |
24V x 350W x 3600rpm |
|---|
| Batteries (pair) |
12V x 20AH |
|---|
| Charger |
1.5 Amp Offboard |
|---|
| Brakes |
Electromagnetic |
|---|
| Front Wheel |
8”x 2” Flat-free |
|---|
| Rear Wheels |
8”x 2” Flat-free |
|---|
| Base Weight |
63 lbs. |
|---|
| Battery Weight (pair) |
31 lbs. |
|---|
| Seat Weight |
21 lbs. |
|---|
| Total Weight |
115 lbs. |
|---|
| Heaviest Piece Weight |
32 lbs. (Front Section) |
|---|
| Warranty on Frame |
Lifetime |
|---|
| Warranty on Electronic Controller/Drive Train Components |
14 Months |
|---|
| Warranty on Batteries |
6 Months |
|---|
|
Mfg. Item #: PHOENIXHD3
SMD Item #: DRV-PHOENIXHD3
|
