SPITFIRE 1310 Compact Travel Scooter
SPITFIRE 1310 Compact Travel Scooter Product Summary

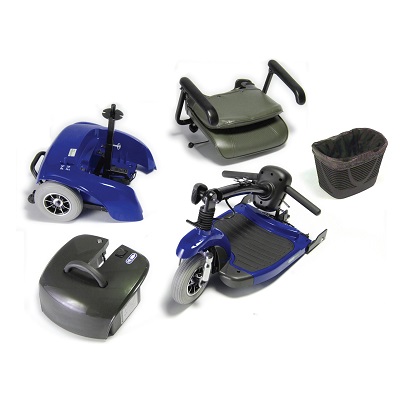

- Scooter can be easily disassembled into 5 pieces for transport or storage.
- 9 mile maximum range with standard 12AH batteries.
- Solid, non-marking, flat-free tires for worry-free travel.
- Adjustable angle tiller allows the client to position the controller into the most ideal driving position.
- Seat features 180 degree swivel and fold-down backrest.
- Removable flip-up armrests have adjustable height, width and angle for abroad range of adjustments. These can easily be changed and adjusted to fit the needs of the client.
- Anti-tip wheels for greater safety.
- Seat back folds completely flat, which comes in handy when transporting or storing the scooter.
- Standard plastic front basket
- 300 lb. Weight Capacity
- Easy to assemble and disassemble into 5 pieces!
Drive offers a Peace of Mind (POM) extended warranty, call us for price 855-528-2539.
SPITFIRE 1310 Compact Travel Scooter Product Specifications:
| HCPCS |
Group 1 / KO800 |
|---|
| Weight Capacity |
300 lbs. |
|---|
| Top Speed |
5 MPH |
|---|
| Top Range |
9 Miles |
|---|
| Turning Radius |
43" |
|---|
| Climbing Angle |
6° |
|---|
| Ground Clearance |
2" |
|---|
| Unit Dimensions |
42" (L) x 19" (W) x 36" (H) |
|---|
| Floor to Seat Height |
20"- 30" |
|---|
| Seat Dimensions |
17" (W) x 16" (D) x 14" (H) |
|---|
| Controller |
Dynamic R50A |
|---|
| Motor/Drive System |
24V x 270W x 4700RPM |
|---|
| Batteries |
12V x 12AH/21AH (2) |
|---|
| Charger |
2 AMPS Off Board |
|---|
| Brakes |
Electro Magnetic |
|---|
| Front Wheels |
7.5" x 2" Flat Free |
|---|
| Rear Wheels |
8.5" x 3" Flat Free |
|---|
| Base Weight |
66 lbs. |
|---|
| Battery Weight |
20 lbs. (12AH)/28lbs. (21AH) |
|---|
| Seat Weight |
17 lbs. |
|---|
| Total Weight |
88 lbs. |
|---|
| Heaviest Piece Weight |
32 lbs. Rear Section |
|---|
| Warranty |
Lifetime on Frame, 14 Months on Electronic Controller and Drive Train Components, Six Months on Battery. |
|---|
|
