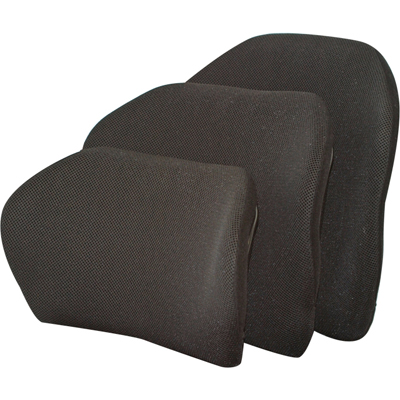

Invacare® Matrx® MX1 Back
Invacare Matrx MX1 Back- Mono Mount
The latest in back support technology combines aesthetic appeal with superior positioning and function. The full range of patent-pending hardware options ensures optimal adjustment for the widest range of applications, while the lightweight carbon fiber shell provides exceptional support and durability. The Invacare® Matrx® MX1 Back is designed for active individuals who demand peak performance and great looks.
Solid carbon fiber shell for exceptional durability and aesthetic appeal
Mono Mount (Patent Pending) - Attaches to wheelchair rigidizer bar providing complete clearance from back canes for optimal propulsion and reach. Fully angle adjustable, remains securely fastened in desired position and included track provides height adjustment. Fits rigidizer bars 3/4"(19mm) optional 7/8" (22mm) and 1" (25mm) band clamps available
Fixed Dual Mount (Patent Pending) - Attaches to wheelchair back canes (requires tools for removal). Fits back canes 1" (25mm) in diameter - optional 3/4" (19mm) and 7/8" (22mm) diameter band clamps available. Attractive, low profile hardware with no sharp edges. Adjustable width to fit wheelchairs 1" wide or 1" narrower than back width, providing optimal fit and support to user*
Quick Release Dual Mount (Patent Pending) - Back cane mount hardware with quick release tabs for easy removal from wheelchair. Includes band clamps to fit 3/4"(19mm), 7/8" (22mm) or 1"(25mm) diameter back canes. Attractive, low profile hardware and 2" adjustable width*
||14"-18" in 1" increments
||9", 12", 16"
||Depth Adjustment- 2" *Dual Mount Hardware Only
||30° range +/-15°
