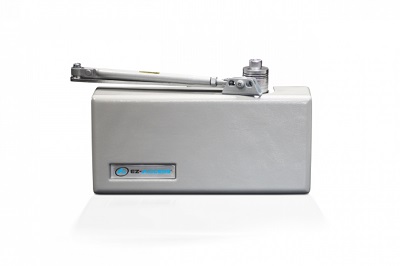

CONCIERGE 2300 Residential Power Door Opener
The CONCIERGE 2300 Residential Power Door Opener is perfect for residential customers looking to increase accessibility to their interior and exterior doorways. This cost-effective, lightweight residential power door opener is easy to install without modification to your door or jambs and simply plugs into a regular 115 vac wall outlet. Friends and family can rest easy knowing the CONCIERGE 2300 Residential Power Door Opener offers important safety features such as an adjustable door hold-open time, automatic load-sensor in instances when the door encounters an obstructionand a thermally-protected drive motor.
Available controls include a wall-mounted push plate, a digital keypad, a variety of wireless remotes, and even a control with specialty sip and puff functionality.
CONCIERGE 2300 Residential Power Door Opener Features:
-
Operation
May be operated manually or with the use of a variety of wireless remotes, keypads, or pushplates.
-
Safety
The door can always be opened manually from either side (although a key may be required). If the door encounters an obstruction during the opening cycle, the friction clutch will slip, timeout and close. Thermally-protected drive motor.
CONCIERGE 2300 Residential Power Door Opener Specifications:
MOTOR: 115VAC 60HZ GEAR MOTOR.
PRODUCT DIMENSIONS: 12 3/4 W X 6 H X 3 1/2 D
WEIGHT: 10 LBS.
MATERIAL/FINISH: COVER GRAY ABS PLASTIC.
PHYSICAL APPLICATION: FOR RESIDENTIAL SIDE HINGED DOORS. DOOR MOUNT ON PULL SIDE (NEEDS 3 1/2 BACK CLEARANCE) - 3 ABOVE TOP OF DOOR NEEDED FOR ARM HUB. JAMB MOUNT ON TOP OF PUSH SIDE. AVOID OUT-SWINGING EXTERIOR DOORS.
ACTIVATION: DRY CONTACT MOMENTARY SIGNAL, WIRELESS.
EXTRA INFO:
-
REQUIRES A 115VAC 60HZ STANDARD OUTLET (9 FOOT POWER CORD SUPPLIED).
-
NO MODIFICATION OF THE DOOR OR JAMBS
-
PLUGS RIGHT INTO A REGULAR 115VAC WALL OUTLET
-
COMPLETE INSTRUCTIONS ARE PACKED WITH EVERY DOOR OPENER
-
VIRTUALLY MAINTENANCE-FREE
-
FITS INTERIOR AND EXTERIOR DOOR APPLICATIONS
-
LEFT AND RIGHT HAND DOOR OPENERS ARE AVAILABLE (HAND CAN BE CHANGED IN THE FIELD IN A
-
MATTER OF MINUTES.
-
LOW PROFILE MODEL, FOR LIMITED ROOM ABOVE THE DOOR
