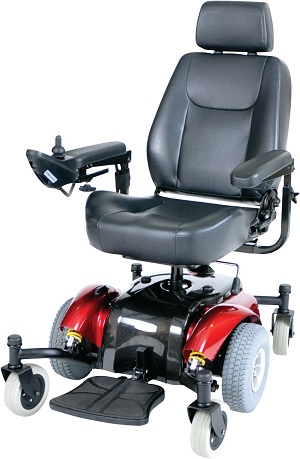

Drive INTREPID Power Wheelchair Product Summary:
- Suspension system for extra smooth ride.
- Height adjustable swivel seat features fold-down backrest.
- Seat back reclines and features adjustable headrest.
- Adjustable length controller mount.
- Armrests are padded, adjustable and removable.
- Available with 18” or 20” width Captain’s Seat.
- Optional swing-away controller arm (Item #AA4100) sold separately.
- Adjustable, flip-up footplate.
- Positioning belt included.
- Optional elevating legrests (requires Item #AE2500 &
- Item #LK3JELR) sold separately.
- Programmable controller.
- Flat-free, non-marking tires.
- Easy free-wheel operation.
- Anti-tip wheels.
GoSouthernMD.com offers a Peace of Mind (POM) extended warranty, call us for price 855-528-2539.
Drive INTREPID Power Wheelchair Specifications:
| HCPCS |
K0823 |
|---|
| Weight Capacity |
300 lbs. |
|---|
| Top Speed |
4 mph |
|---|
| Maximum Range |
20 miles |
|---|
| Turning Radius |
18" |
|---|
| Climbing Angle |
6° |
|---|
| Ground Clearance |
3" |
|---|
| Dimensions |
40” (L) x 24.5” (W) |
|---|
| Floor-to-Seat Height |
20" - 23" |
|---|
| Captain's Seat Dimensions (W x D) |
18” (W) x 18” (D) | 20” (W) x 18” (D) |
|---|
| Controller |
Dynamic A50A |
|---|
| Motors (2) |
24V x 320W x 4600 rpm |
|---|
| Batteries (pair) |
12V x 35AH (U1) |
|---|
| Charger |
5A Offboard |
|---|
| Brakes |
Electromagnetic |
|---|
| Caster Wheels |
6” x 2” Solid |
|---|
| Drive Wheels |
10” x 3” Flat-free |
|---|
| Base Weight |
115 lbs. |
|---|
| Battery Weight (pair) |
48 lbs. |
|---|
| Seat Weight |
52 lbs. |
|---|
| Total Weight |
215 lbs. |
|---|
| Warranty on Frame |
Lifetime |
|---|
| Warranty on Electronic Controller and Drivetrain Components |
14 Months |
|---|
| Warranty on Batteries |
6 Months |
|---|
|
Mfg. Item #: INTREPID****CS
SMD Item #: DRV-INTREPID****CS
|
