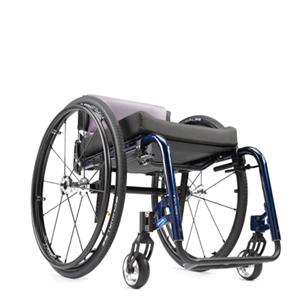

Invacare Top End Reveal Wheelchair

Invacare Top End Reveal Wheelchair

Additional Images:     1     2     3

Special Price:   $1,699.00
  List Price:   $1,797.97
    You Save:   $98.97

FREE standard shipping!

Case Qty: 1


Front Frame Angle to Floor:

Center Gravity:

Seat Width:

Seat Depth:

Front Seat to Floor:

Rear Seat to Floor:

Seat Upholstery:

Back Height:

Back Type:

Back Accessories (Choose One):
Bolt-Through Integral Push Handles - add - $69.00
Push Handles, Non-Adjustable Bolt-On - add - $69.00
Push Handles, Adjustable Height Bolt-On - add - $150.00

Back Upholstery:

Arm Type:

Footrest Options:
1 Piece Tubular Footrest
Adjustable Angle One Piece Footplate
Adjustable Angle Footrest with 2" Risers - add - $69.00

Footrest/Legrest Accessories:
Calf Strap
Foot Positioning Kit with Heel Loops - add - $19.00
ChairArmor Black Neoprene Frame Protectors - add - $39.00
ChairArmour Blue Neoprene Frame Protectors - add - $39.00
ChairArmour Red Neoprene Frame Protectors - add - $39.00
Plastic Footrest Cover - add - $49.00
Luggage Carriers - add - $69.00

Rear Wheels:

Tire Options:

Spinergy Color:


Camber System:


Handrim Mounting:

Caster Options:

Caster Forks:

Wheel Locks:

Wheel Lock Extensions:

Side Guards:



Add to Wish List   |

Invacare Top End Reveal Wheelchair

The Invacare Top End Reveal Wheelchair has it all - simple adjustments, performance AND an ultra modern minimalist design - all at an affordable price.

Invacare Top End Reveal Wheelchair Features

  • Simple adjustments - Adjust the caster angle, center of gravity, rear seat to floor and back angle for a personalized fit.
  • Optimized frame material - 7005 Aluminum is used to ensure a more energy efficient and rigid ride.
  • Modern aesthetics - The lightweight cantilever or open frame design makes the frame more compact and easy to transport.
  • Matrx Seating - Choose from the most popular Matrx cushions and backs for a customized seating solution.

Invacare Top End Reveal Wheelchair Specifications

  • Width By Camber Angle: 6.75" plus seat width with 0° camber
  • Seat Width: 12"W-20"W
  • Seat Depth: 12"D-20D
  • Seat To Floor Height: Front: 15" - 20" (1/2" increments) Rear: 14"-19"
  • Frame: Straight
  • Wheel and Caster Size: Wheels: 22", 24", 25", 26" Casters: 4", 5", 6"
  • Wheels: Tires: Schwalbe®, Primo, Knobby, Kenda, Treaded pneumatic, Pneumatic flat free
  • Arm Style: T-Arm, Swingaway
  • Back Angle: 16 degree range in 4 degree increments
  • Back Options: Folding, lock-down, angle-adj. back
  • Product Weight Capacity: 250 lb.
  • Product Weight: 19.71 lb. 16" x 16" with 24" Lightweight Performance Spoke wheels, bolt-on seat upholstery, mesh back upholstery with adjustable tension and 4" urethane casters
  • Color: 14 frame colors
  • Warranty: Limited: 5 years on the frame

One sweet wheelchair

Additional Specifications for the Invacare Top End Reveal Wheelchair:

  • Elevating Legrest Options: No
  • Seat Width: 12" 13" 14" 15 16" 17" 18" 19" 20"
  • Quick-Release Axle: Yes
  • Removable Armrests: No
  • Pneumatic (air-filled) tire option: Yes
  • Angle-adjustable Back: Yes
  • Frame Type: Rigid
  • Hemi Height Option: Yes
  • Available Seat Depths: 12" 13" 14" 15" 16" 17" 18" 19" 20"
  • Seat to Floor Height: 15"
  • Adjustable Back Height: 8"
  • One-Arm Drive Option: No
  • Removable Legrests: No
  • Frame color options: Yes
  • Upholstery Options: Yes
  • Reclining Back Option: No
  • Rear Wheel Size: 22" 24"
  • Expedited Shipping Available: No
  • Seat widths of less than 16”: Yes
  • Seat widths of more than 20": No
  • Hemi-height option for foot propelling: Yes
  • Angle-adjustable Back: Yes
  • Height-Adjustable Armrests: Yes
  • Fold-down back for easy transport: No
  • Overall Width Open - Add to Seat Width: 6.75

Warranty Information for the Invacare Top End Reveal Wheelchair warrants the frame to be free from defects in materials and workmanship for the original purchaser for the lifetime of the purchaser. All components including, but not limited to camber tubes, caster forks, armrests and upholstery are warranted against defects in materials and workmanship for a period of one (1) year from the date of purchase except push handle grips, bushings, bearings and tires/tubes. If within such warranty period any such product shall be proven to be defective, such product will be repaired or replaced, at Invacare's option.

This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare's sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.

How to measure your Invacare Top End Reveal Wheelchair Click Here?

Mfg. Item #: RVL
